Introduction

Input fields are essential components of any user interface, serving as gateways to unlock the true potential of user interactions. Although they might not be as visually striking as other components, such as cards or image sliders, input fields are, in fact, one of the most complex and crucial elements to perfect. Mastering the design of these fields can significantly enhance user experience, ensuring seamless and effective interaction between users and digital platforms.

At first glance, you might question why we're focusing on input fields instead of the more aesthetically appealing components. While cards or sliders are visually engaging, they are relatively straightforward and less challenging in terms of design intricacies. Rest assured, we will dive into the creation of these components as well in future discussions.

As a bonus, read till the end to access a free Figma resource of a well-designed input field to inspire your projects. Let's get started on this journey to elevate your input field design skills!

What is a text input field?

A text input field, represented as the <input> HTML element, is a fundamental component in web interfaces that allows users to enter and edit text-based information. By default, the type attribute is set to text, but variations like email and password can be specified for specific use cases. Each input type may have custom properties, such as masking the characters in a password field for added security.

Text input fields have different states based on user interaction:

• Default
  The standard state when the input field is displayed
• Hover
  The state when the user's cursor hovers over the input field
• Focus
  The state when the input field is clicked or selected by the user
• Disabled
  The state when the input field is inactive, preventing user input

These states can be customized using CSS pseudo-selectors and JavaScript events targeting state changes, such as the @blur event when the input field loses focus.

In modern web interfaces, it's essential to provide more detailed and versatile solutions for various use cases than what the native input element can offer. To achieve this, it's recommended to create a custom text input component using a JavaScript framework like React, Vue, or Angular. This approach allows for added customizations, improved error handling, enhanced styling, and micro-interactions that aren't available with the default HTML element.

By understanding the different states and customizations available for text input fields, we can start exploring the best practices and design approaches to create an exceptional input component.

Customizing the styles

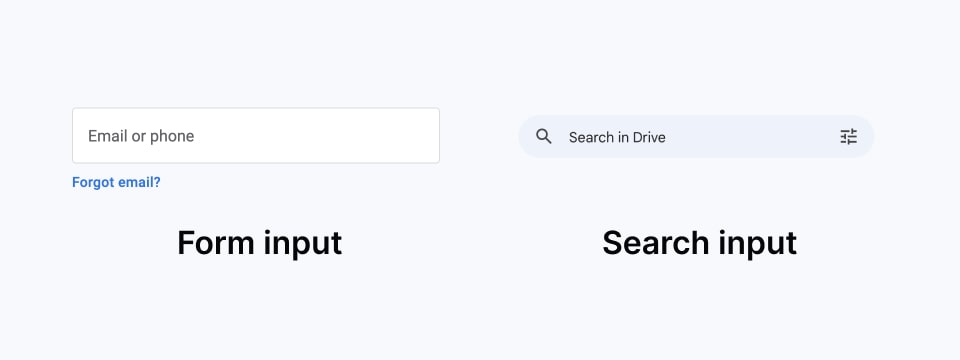

When customizing the style of an input field, it's essential to consider the different use cases and contexts it will be used in. For instance, a standalone search input in a header requires different customizations compared to a standard input within a form. In the former example, a placeholder is more suitable than a label to save space, while a form input usually requires a label to inform users about the input's purpose, preventing errors when filled.

To accommodate various requirements, it's recommended to create a versatile input component that allows for diverse customization options. This ensures a feature-rich input that can be easily tweaked or updated in one place for all elements on your website.

Style

Begin by setting a padding, border-radius, and border-color to enhance the input's appearance. Add a box-shadow for the focus state, as well as a grey background and a slightly lighter shade of grey for the disabled state.

Size

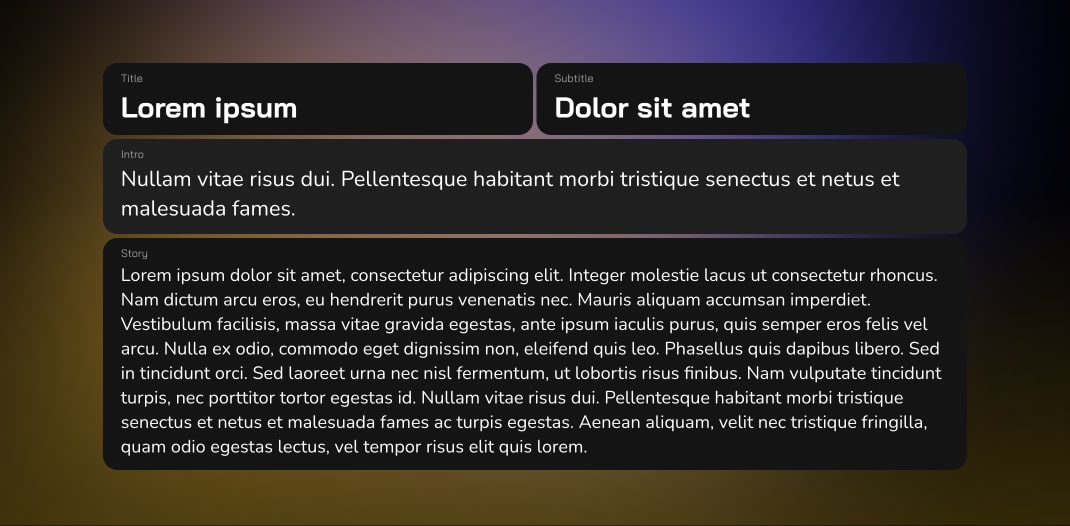

Creating size parameters for input fields, such as S, M, and L, can be an effective way to indicate hierarchy and suggest the appearance of the content after it's saved. This approach is particularly useful in forms where different input fields hold varying levels of importance or serve distinct purposes.

For example, when creating a blog post, you could use an L-sized input for the title, an M-sized input for the summary, and an S-sized input for the content textarea. This visual hierarchy would then be mirrored in the final post, with the title appearing as a heading, the summary as a subheading, and the content as the body text.

By incorporating size parameters in your input component, you can enhance the user experience by providing clearer visual cues and better reflecting the intended structure of the content.

In addition to size parameters, it's crucial to make the input field fluid so it takes up the remaining space. In CSS, you can achieve this by setting the input width to 100%, and in Figma, you can use the fill-container option. This way, when you set the width of a form, the input field will automatically adjust to fit the available space.

Label

Height is a critical factor when designing input fields, particularly in lengthy forms with multiple inputs. Oversized input fields can consume valuable space and make a form appear daunting. One solution to reduce input height is using a floating label. By customizing the <label> property with an absolute position that translates along the Y-axis upon focus and slightly scales down, you can incorporate the label within the input field itself. However, this approach has some trade-offs: the label may be smaller than the WCAG recommendation in the focused state, and using input placeholders is not advised. In most cases, these issues can be resolved by adding helper text above or below the input field.

Extra functionalities

Enhancing input fields with additional functionalities can significantly improve usability by incorporating conditionally rendered graphic elements, texts, icons, and more.

Icons

Adding optional icons to the left and right sides of the input field, referred to as prefix and suffix icons, can serve various purposes.

• Prefix Icon
  This icon provides visual context for the input field, making it easier for users to understand its purpose and reducing cognitive load. For instance, an email field could feature a mail icon, creating a clear association between the icon and the input's function.
• Suffix Icon
  This icon typically offers additional functionality related to the input field. A common example is the eye icon in a password field, which can be used to toggle the visibility of the entered password.

Incorporating prefix and suffix icons in your input component not only enhances its appearance but also contributes to a more intuitive and user-friendly experience.

Help patterns

Adding extra elements to provide contextual help is a crucial aspect of input field design. In some cases, you may need to explain why certain data is being requested or demonstrate the correct format for the value being asked for. Incorporating optional descriptions or tooltips in your input field can significantly enhance the user experience.

Here are a few ways to include help patterns in your input fields:

• Description
  Add an optional description below the input field to provide additional information about the data being requested or the required format.
• Popover
  Display a popover next to or above the input field with relevant information when the input is in focus. This can be especially useful when you want to provide help without cluttering the interface.
• Help icon
  Place a help icon next to the input field or label that, when hovered over, displays a popover containing additional information or guidance.

The best approach depends on your design preferences and the specific use case. Regardless of the method you choose, incorporating help patterns in your input fields will contribute to a more intuitive and user-friendly experience.

Error handling

While browsers can validate some common input errors based on the input type, there are inconsistencies in how different browsers handle these validations. Moreover, you may require more specific validation rules, such as checking whether an email address already exists in your database. To ensure better usability and provide a consistent experience across all browsers, it's crucial to account for all possible scenarios and create a custom validation system.

• Custom validation
  Implement custom validation rules in your input component to handle both browser-based validations and more specific requirements, such as checking for duplicate email addresses in your database.
• Consistent appearance
  Design a consistent error display system that works across all browsers. This can include error messages, visual cues like border colors, and icons indicating an error state.
• Real-time validation
  Where appropriate, consider providing real-time validation feedback as the user enters data, so they can correct errors immediately. This can improve the overall user experience and minimize potential frustration.
• Accessibility
  Ensure your error handling system is accessible to all users, including those who rely on screen readers or other assistive technologies. Properly structured error messages and use of ARIA attributes can help make your input fields more accessible.

Creating the component in Figma

Figma is indeed an excellent tool for component selection within a variant based on properties and bulk layer selection among components inside a variant. However, using a _base component has its advantages, especially when it comes to reusing it in other components that require similar formatting to the input, such as textarea and select elements. This approach allows for easy modification of spacings, paddings, and layouts for all derivatives of the input at once, which aligns with the principles of Once UI.

To achieve this, we will create several wrapper components that enable different styles for various states (e.g., error) and allow for toggling extra elements like descriptions.

By the end of this process, our input component will have the following properties:

• Label
  Text property
• Filled
  Boolean property
• Value (When Filled is true)
  Text property
• States
  Variant with values for Default, Hover, Focus, Disabled, Error
• ErrorText (When variant is Error)
  Text property
• Prefix
  Boolean property
• PrefixIcon (When Prefix is true)
  Instance swap property
• Suffix
  Boolean property
• SuffixIcon (When Suffix is true)
  Instance swap property
• Description
  Boolean property
• DescriptionText (When Description is true)
  Text property

This comprehensive set of properties ensures that our input component is versatile, adaptable, and reusable across a range of contexts, ultimately contributing to a more consistent and efficient design system. Furthermore, these properties enable customization at the mt-32evel component, eliminating the need to find and select individual layers. This streamlined approach simplifies the design process, making it easier to modify and adapt the input component to fit various use cases and maintain consistency across your entire project.

Prototyping

With all the variants defined, it's time to set up interactions to make all instances interactive by default. This process enhances the user experience by simulating how the input component will function in a real-world scenario.

Here's how to set up the interactions:

• On the Default variant, create a hover interaction using Smart Animate to transition to the Hover variant.
• Next, on the Hover variant, create a click interaction using Smart Animate to transition to the Filled Focus variant.
• Finally, create a click interaction on the Filled Focus variant using Smart Animate to transition to the Filled Default variant.

By setting up these interactions, your input component will provide a more realistic and engaging experience, allowing you to better understand and fine-tune its behavior before incorporating it into your design project. This interactive prototype will be invaluable for user testing, as it enables you to gather feedback and identify potential usability issues early in the design process. Moreover, it facilitates a smoother developer handoff by providing a clear demonstration of how the input component should function and interact with user input. In this way, you can ensure that your design intentions are effectively communicated and accurately implemented.

💥 Figma freebie

Conclusion

In this article, we've delved into the complexities of designing the best input component, covering various approaches and aspects to consider in the process. We've highlighted the importance of accommodating different use cases, customizing styles, providing extra functionalities, and addressing error handling and help patterns. We also discussed the benefits of using a base component in Figma, prototyping interactions, and working within the limitations of the tool.

As you can see, designing an input component requires considering numerous aspects, and it's just one of several essential interactive elements that modern user interfaces demand. The real challenge lies not in styling but in setting up the structure, properties, and documentation. The good news is that the styles are easily adjustable.
